Strategically located in the industrial hub of Amman, Jordan, Sabra Metals has established itself as a trusted source for high-performance alloys, with a particular expertise in supplying Hastelloy X bars and rods. We understand that demanding industrial environments require materials of exceptional integrity, which is why we focus on providing this premium nickel-chromium-iron-molybdenum alloy to clients who cannot compromise on performance. Our commitment extends beyond mere supply to ensuring that every bar and rod meets the exacting standards necessary for the most challenging applications.
The composition of Hastelloy X is a careful balance, primarily nickel with significant chromium for oxidation resistance and molybdenum for strength. This combination is further enhanced with iron and tungsten, resulting in a material renowned for its ability to retain impressive tensile and yield strength even when exposed to extreme temperatures. It maintains excellent fabricability and outstanding resistance to stress-corrosion cracking, making it as practical to work with as it is durable in service, a true workhorse among high-temperature alloys.
| Standards : | ASTM B572, ASME SB572 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

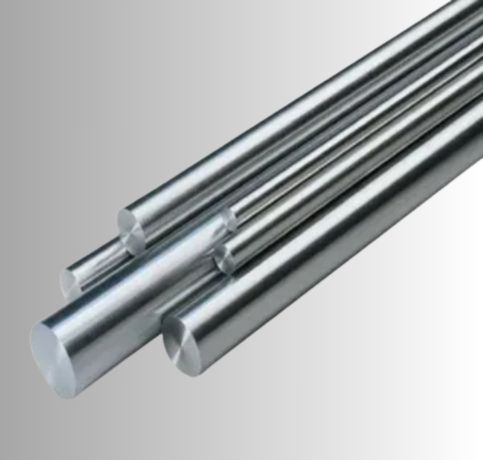

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

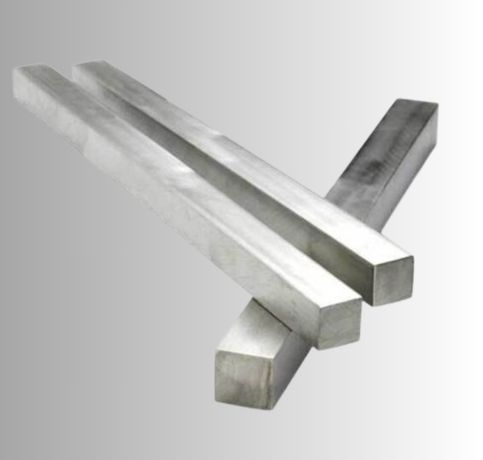

| Square bar size : | 4 to 100mm |

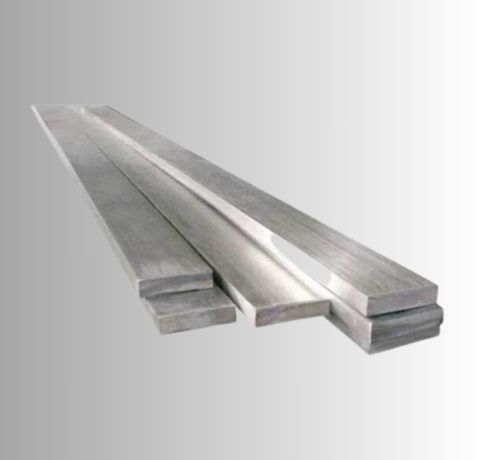

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | C0 | S | Fe | Ni | Cr | Mo | P |
| Hastelloy X | 0.05 – 0.15 | 1.00 max | 1.00 max | 0.50 – 2.50 | 0.03 max | 17.00 – 20.00 | Balance | 20.50 – 23.00 | 8.00 – 10.00 | 0.04 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm³ | 1355°C | 655 MPa | 240 MPa | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
Hastelloy X rods are typically available in sizes ranging from 1/8" to 6" in diameter, with custom sizes also offered. Common finishes include hot-rolled, cold-drawn, and polished finishes to suit various applications.
Yes, Hastelloy X rods can be welded using standard welding techniques. They require careful control of heat and welding parameters to maintain their high-temperature resistance and strength.
Hastelloy X bars are known for their exceptional high-temperature strength, oxidation resistance, and excellent resistance to thermal-fatigue and stress-corrosion cracking. They also offer excellent weldability and formability for demanding applications.
The unique properties of Hastelloy X bars and rods make them indispensable in fields where failure is not an option. You will find them at the heart of gas turbine engines, forming critical components like combustion cans and transition ducts. They are equally vital in industrial furnace systems, supporting fixtures, and heat-treating equipment. From aerospace engineering to chemical processing and petrochemical refining, these materials provide the reliable backbone for technologies that operate under intense thermal and mechanical stress, ensuring long-term performance where other materials would falter.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
