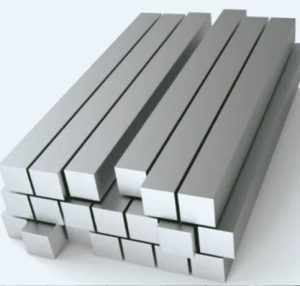

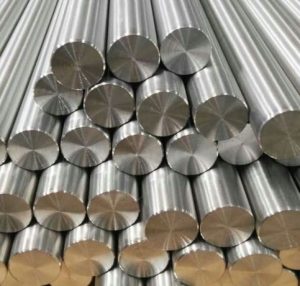

Based in Amman, Jordan, Sabra Metals has built a solid reputation as a reliable manufacturer and supplier of top-notch Mu Metal Bars and Rods, perfect for advanced magnetic shielding and electromagnetic control. Crafted from a high-permeability nickel–iron alloy, Mu Metal is engineered to deliver outstanding magnetic shielding performance. The company takes great care in managing chemical composition, precision processing, and dimensional accuracy to ensure optimal magnetic properties. With cutting-edge manufacturing capabilities and dependable supply chains, Sabra Metals caters to industries like electronics, aerospace, medical equipment, research labs, and defense, all of which demand precise magnetic performance and material consistency.
Mu Metal Bars and Rods are primarily made up of nickel (usually 75–80%) and iron, with small amounts of copper and molybdenum added to boost magnetic permeability and stability. This unique blend results in extremely high magnetic permeability and very low coercivity. On the mechanical side, Mu Metal boasts moderate tensile strength, good ductility, and excellent formability. While its mechanical properties are important, they take a backseat to its magnetic performance, and proper annealing is crucial for achieving the best magnetic shielding effectiveness.
| Standards : | — |
| Size Range : | 0.015″ Thk up to 2″ Thk |
| Thickness : | Range from .008″ to .0125″ |
| Length : | 2m, 2.44m, 3m, or as required |
| Width : | 10-2500mm |
| Grade | C | Ni | Mo | I | Si | Mn |
| MU Metal | 0.02 max | 80.0-80.0 | 4.20 max | Balance | 0.35 max | 0.50 max |
| Grade | Density | Electrical Resistivity | Specific Heat | Tensile Strength | Specific Heat |
| MU Metal | 8.74 g/cm3 | 0.0000580 ohm-cm | 0.494 J/g-°C | 620 MPa (Ultimate) / 228 MPa (Yield) | 0.494 J/g-°C |
Yes, Mu Metal bars are recyclable. They are made of a high-purity nickel-iron alloy, which can be melted down and reused in various industrial applications, reducing waste and environmental impact.
Mu Metal bars can be welded, but it is challenging due to their high magnetic permeability and low melting point. Special techniques and care are needed to prevent distortion or loss of properties.
Mu Metal rods are typically available in sizes ranging from 0.125 inches to 4 inches in diameter. Finishes include annealed, cold worked, and polished, depending on the specific requirements.
Mu Metal Bars and Rods find their way into a variety of applications that require effective magnetic shielding and control of electromagnetic interference. You’ll often see them in transformer cores, magnetic shields for sensitive electronic components, shielding enclosures, sensors, and scientific instruments. They play a vital role in medical imaging equipment, aerospace navigation systems, telecommunications, and defense electronics. Additionally, Mu Metal bars and rods are ideal for laboratory equipment and precision instruments where shielding from external magnetic fields and preventing signal distortion is essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
