Based in Amman, Jordan, Sabra Metals has built a solid reputation as a reliable manufacturer and supplier of high-quality Nickel Alloy 200 Forgings, perfect for tough industrial settings. Crafted from commercially pure wrought nickel, these forgings excel in resisting corrosion while offering impressive thermal and electrical conductivity. The company adheres to strict forging controls, precise heat treatment, and thorough inspection processes to guarantee consistent quality and accurate dimensions. With cutting-edge manufacturing capabilities and dependable supply chains, Sabra Metals caters to industries like chemical processing, electronics, power generation, and aerospace, all of which demand high-purity, performance-driven forged components.
Nickel Alloy 200 Forgings are made up of at least 99.0% pure nickel, with carefully controlled trace elements. This specific composition provides exceptional corrosion resistance, especially in alkaline and neutral environments. On the mechanical side, Nickel 200 boasts good tensile strength, excellent ductility, and high toughness across a broad temperature range. It performs reliably even in sub-zero conditions and moderate heat, ensuring structural stability, impact resistance, and great formability for forged components.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754, DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

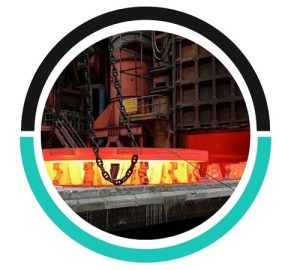

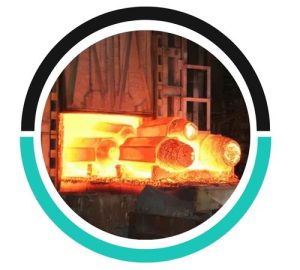

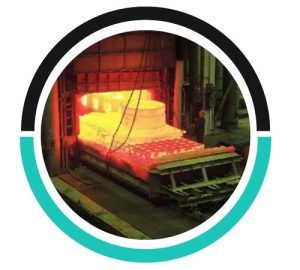

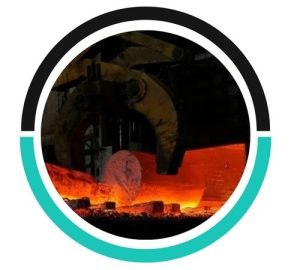

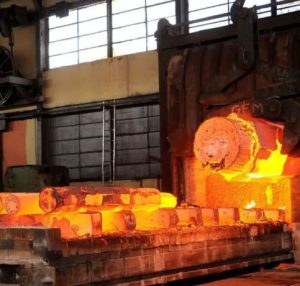

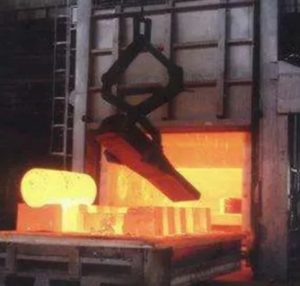

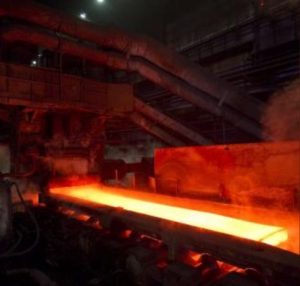

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
After forging Nickel Alloy 200, controlled cooling methods such as air cooling or furnace cooling are typically used to avoid rapid temperature changes and prevent distortion. Gradual cooling helps maintain the material's mechanical properties and prevent cracking.
Post-forging operations for Nickel Alloy 200 include annealing to relieve internal stresses and improve ductility, followed by machining or surface finishing to achieve precise dimensions and surface quality. These processes ensure the alloy's optimal performance and structural integrity.
The ideal temperature range for forging Nickel Alloy 200 is between 1,900°F (1,038°C) and 2,100°F (1,149°C). This range ensures proper malleability and helps achieve the desired mechanical properties during the forging process.
Nickel Alloy 200 Forgings find their place in a variety of applications that demand high purity, corrosion resistance, and thermal stability. They are commonly used in chemical processing equipment, valves, pump components, heat exchangers, and reactor vessels. These forgings are also extensively utilized in food processing systems, electronics manufacturing, aerospace components, and power generation equipment. Additionally, Nickel 200 forgings are well-suited for handling caustic alkalis, organic chemicals, and fluorine compounds, making them ideal for environments where maintaining material integrity and ensuring a long service life are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
