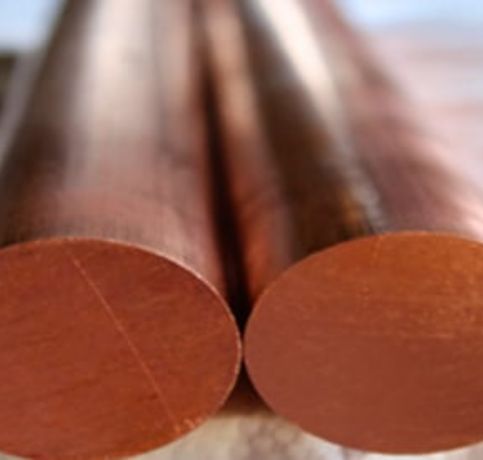

Nestled in the industrial heart of Amman, Jordan, Sabra Metals stands as a trusted manufacturer and supplier of high-quality non-ferrous metals. We take particular pride in our production of Copper C11400 bars and rods, materials known for their exceptional reliability. Sourced and processed with meticulous care, our products are engineered to meet the demanding standards of regional and international industries, providing a foundation of strength and conductivity for a wide array of crucial applications.
The composition of C11400 is characterized by its high purity, being at least 99.90% copper with a carefully controlled oxygen content. This specific formulation results in excellent electrical and thermal conductivity, making it one of the most efficient choices for these properties. Mechanically, it offers good ductility and formability, allowing it to be easily shaped and fabricated while still providing substantial strength and corrosion resistance for long-term durability in various environments.
| Specification | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Size Range | 3.17 MM TO 350 MM DIA |
| Length | Random, Fix & Cut Length |

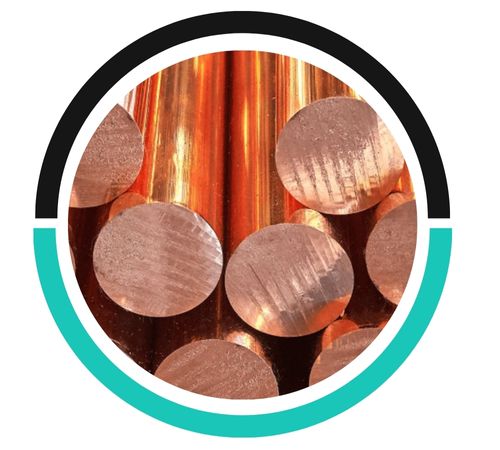

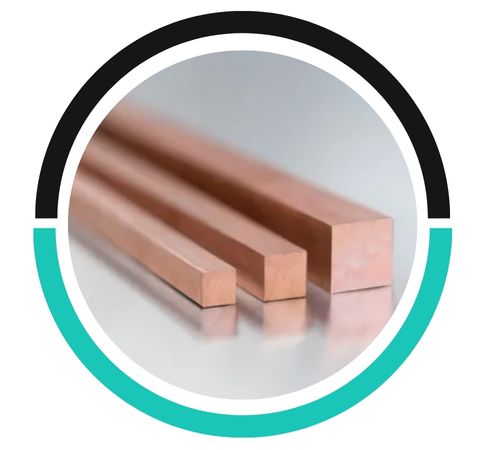

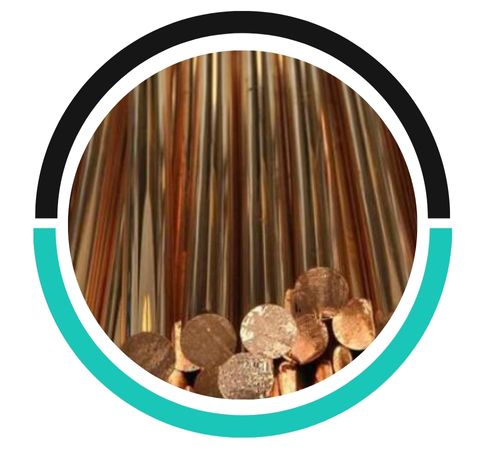

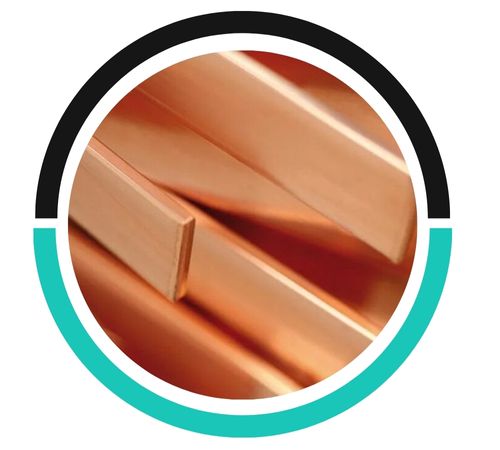

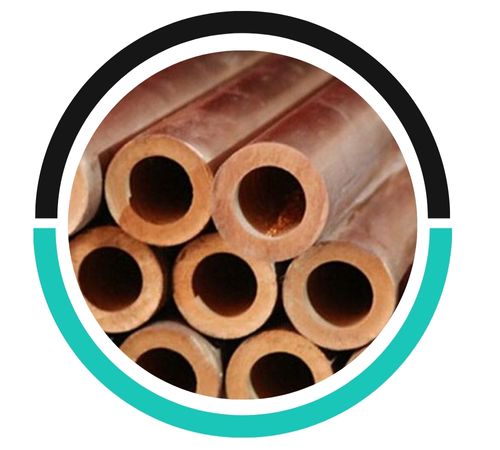

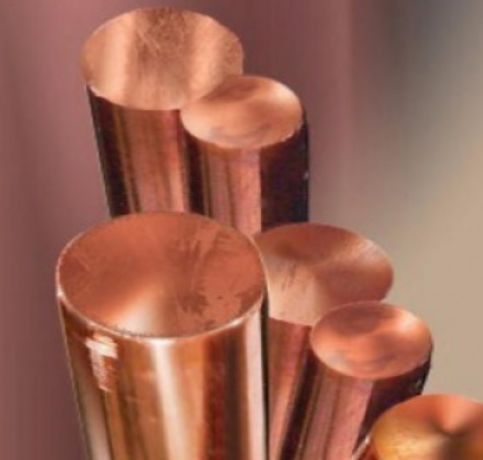

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Melting Point – Liquidus°F | 1980 |
|---|---|
| Densitylb/cu in. at 68°F | 0.322 (1) |
| Specific Gravity | 8.91 (2) |
| Electrical Conductivity% IACS at 68°F | 100 |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 224 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 9.8 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.092 |
| Modulus of Elasticity in Tensionksi | 17000 |
| Modulus of Rigidityksi | 6400 |
Copper C11400 Bars and Rods have good thermal conductivity but are not ideal for high-temperature applications. They are best used at temperatures up to 200°C to prevent softening and degradation.
Yes, Copper C11400 Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly option for sustainable industrial use and reducing environmental impact.
Copper C11400 Bars and Rods are naturally resistant to corrosion in many environments. However, in harsh conditions such as marine or acidic environments, additional protective coatings may be recommended.
The uses for these versatile bars and rods are extensive, forming the backbone of many electrical systems as bus bars, connectors, and switchgear components. Beyond power distribution, they are invaluable in construction for architectural elements and roofing, as well as in plumbing and heat exchanger systems where corrosion resistance and thermal transfer are key. Essentially, wherever reliable conductivity and dependable performance are non-negotiable, you’ll find Sabra Metals’ C11400 providing a solid, trustworthy solution.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
