Based in Amman, Jordan, Sabra Metals has built a solid reputation as a reliable manufacturer and supplier of top-notch Inconel 617 Bars and Rods, designed for the toughest high-temperature and high-stress industrial applications. Crafted from a unique nickel–chromium–cobalt–molybdenum superalloy, these bars and rods boast remarkable strength, oxidation resistance, and thermal stability. Sabra Metals takes pride in maintaining strict oversight of chemical composition, dimensional accuracy, and surface finish to align with international quality standards. With state-of-the-art manufacturing facilities and dependable supply capabilities, the company caters to industries like aerospace, power generation, petrochemical, and high-temperature engineering around the globe.
Inconel 617 Bars and Rods are primarily made of nickel, enhanced with notable amounts of chromium, cobalt, and molybdenum. This specific alloy mix provides outstanding resistance to oxidation, carburization, and creep, even at extremely high temperatures. On the mechanical side, Inconel 617 showcases impressive tensile and yield strength, exceptional creep resistance, and remarkable toughness. It retains stable mechanical properties even after prolonged exposure to intense heat and thermal cycling, making it an ideal choice for continuous use in harsh operating conditions.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |
| 617 Inconel Round Bars size | Diameter: 3-~800mm |

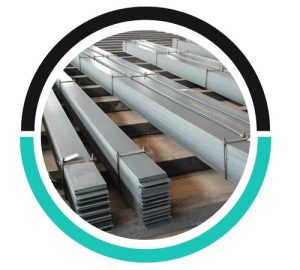

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |
| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |
| Inconel 617 Hex Bar size | 2-100mm A/F |

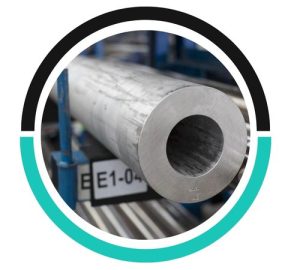

| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |
| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
Inconel 617 Bars and Rods find their place in a variety of applications that demand exceptional strength and the ability to withstand extreme temperatures. They are commonly used in gas turbine components, combustion chambers, heat exchanger tubing, furnace parts, and high-temperature structural elements. These materials are extensively utilized in aerospace engines, power generation systems, petrochemical processing facilities, and industrial heating equipment. Additionally, Inconel 617 bars and rods are perfect for advanced energy systems and thermal processing units where long-term creep resistance, oxidation stability, and mechanical reliability are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
