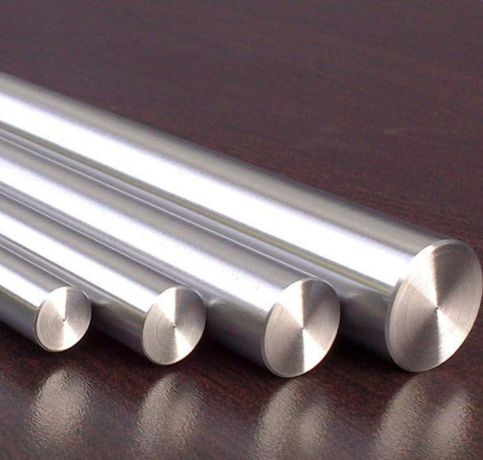

Nestled in the industrial heart of Amman, Jordan, Sabra Metals has established itself as a trusted partner for demanding industries worldwide. We specialize in providing high-performance nickel alloys, with a particular expertise in the supply of Inconel 686 bars and rods. Our commitment is to deliver materials that meet the most rigorous standards, ensuring our clients receive components built to withstand the most aggressive environments, from chemical processing to offshore exploration. We pride ourselves on being more than just a supplier; we are a dedicated resource for engineering excellence.
The exceptional resilience of Inconel 686 stems from its sophisticated composition, which is primarily nickel-chromium-molybdenum, fortified with tungsten. This unique blend grants it an impressive resistance to a wide spectrum of corrosive threats, including potent oxidizing and reducing acids. Mechanically, these bars and rods offer remarkable strength and durability, maintaining their structural integrity even when subjected to intense heat and pressure. This combination ensures they perform reliably in situations where lesser materials would quickly succumb to failure.
| Element | Content (%) |
|---|---|
| Nickel, Ni | 59 |
| Chromium, Cr | 19-23 |
| Molybdenum, Mo | 15-17 |
| Iron, Fe | ≤ 5 |
| Tungsten, W | 3.0-4.40 |
| Manganese, Mn | ≤ 0.75 |
| Phosphorous, P | ≤ 0.040 |
| Sulfur, S | ≤ 0.020 |
| Titanium, Ti | 0.020-0.25 |
| Carbon, C | ≤ 0.010 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 721.9 MPa | 104700 psi |
| Yield strength (@strain 0.200%) | 364 MPa | 52800 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Shear modulus | 77 GPa | 11200 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elongation at break | 71% | 71% |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 721.9 MPa | 104700 psi |
| Yield strength (@strain 0.200%) | 364 MPa | 52800 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Shear modulus | 77 GPa | 11200 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elongation at break | 71% | 71% |
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@21-100°C/69.8-212°F) | 11.97 µm/m°C | 6.650 µin/in°F |
Yes, Inconel 686 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, Inconel 686 bars/rods are weldable using standard techniques, but preheating and specialized filler materials are recommended to ensure strong, corrosion-resistant welds.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
The real-world uses for Inconel 686 bars and rods are found in some of the most challenging applications imaginable. They are indispensable in constructing chemical processing equipment, pollution control scrubbers, and flue gas desulfurization systems where resistance to sulfuric and hydrochloric acids is paramount. You’ll also find them in critical marine and aerospace components, providing long-lasting service in environments plagued by saltwater corrosion and extreme temperatures. Essentially, wherever conditions are too severe for standard alloys, Inconel 686 provides a robust and dependable solution.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
