Nestled in the heart of Amman, Jordan, Sabra Metals has built a strong reputation as a trusted manufacturer and supplier of high-performance alloys, with a special focus on Monel bars and rods. We understand that in a demanding industrial landscape, the integrity of your materials is non-negotiable. That’s why we are committed to providing not just metal, but reliable, durable solutions crafted to meet the precise challenges faced by engineers and fabricators across the region and beyond.
The strength of Monel lies in its unique composition, primarily a blend of nickel and copper, which gives it exceptional resistance to corrosion, especially in harsh environments like saltwater. These bars and rods are not just resistant; they are remarkably strong and tough, maintaining their mechanical integrity under high stress and across a wide range of temperatures. This combination of durability and resistance makes it a material that stands up to the test where others might fail.

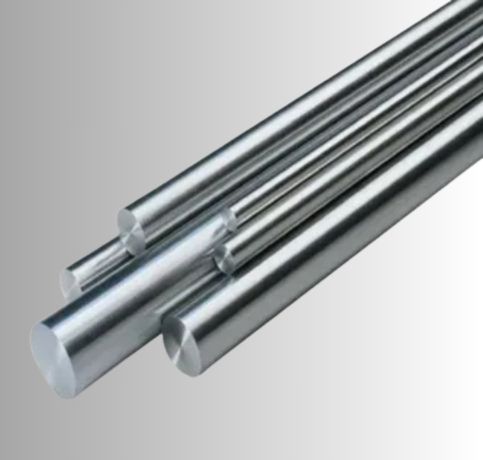

Monel Round Bar Specification : ASTM B164 / A479, ASME SB164 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

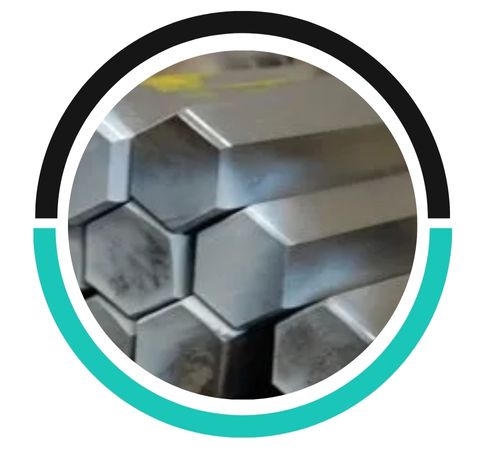

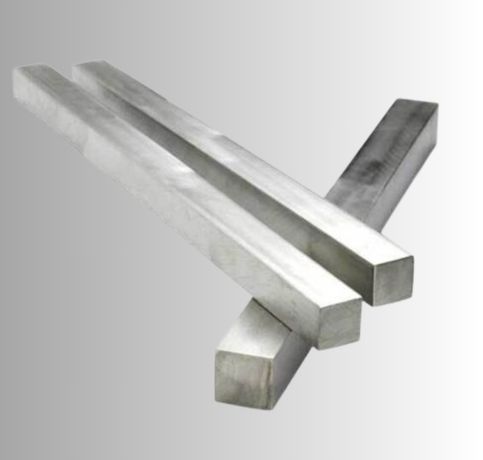

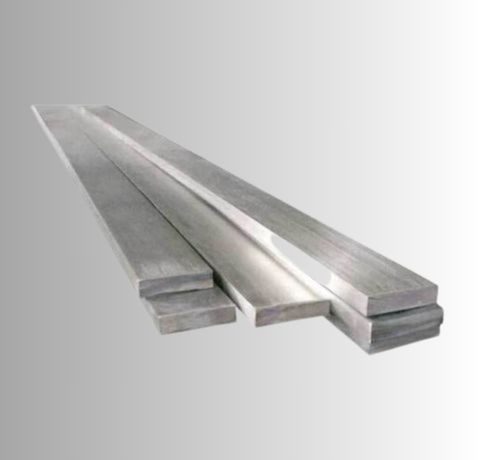

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NW 4400 | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | – | – |
Yes, Monel alloy bars are highly corrosion-resistant, particularly to seawater, acids, and alkalis. Their exceptional resistance makes them suitable for harsh environments and applications requiring durability.
Yes, Monel rods can be customized in size and length to meet specific application requirements. They are available in various diameters and lengths, ensuring versatility for different industries.
Monel alloy bars and rods perform excellently in high-temperature environments, maintaining strength and resistance to oxidation. They are ideal for applications in extreme heat, such as chemical processing and marine industries.
Because of its robust nature, Monel finds its purpose in some of the most challenging applications imaginable. It is indispensable in marine engineering for components like propeller shafts and pump parts, and is equally vital in chemical processing plants where it handles corrosive substances. You’ll also find these reliable bars and rods forming the backbone of critical aerospace components, oil and gas equipment, and even in specialized musical instruments, proving its versatility and unmatched performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
