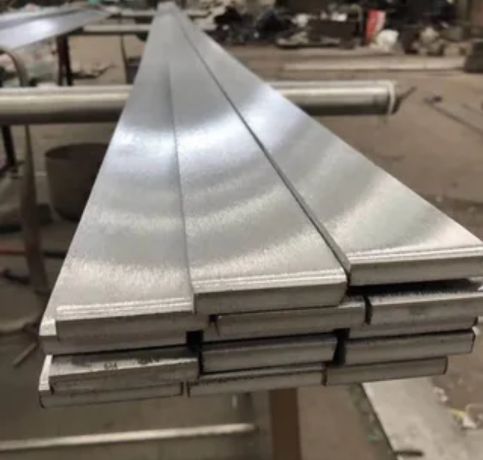

Sabra Metals, located in Amman, Jordan, stands out as a top manufacturer and supplier of premium stainless steel products, including their renowned 416 Flat Bars. These bars are celebrated for their precision, durability, and outstanding machinability, making them perfect for the rigorous demands of industrial, mechanical, and commercial applications. Designed to deliver exceptional strength and wear resistance, Sabra Metals’ 416 Flat Bars are also easy to fabricate. Thanks to their advanced manufacturing techniques and strict quality control measures, each bar meets both local and international standards, ensuring they are a dependable choice for engineers and manufacturers alike.
The Stainless Steel 416 Flat Bars are martensitic stainless steels that contain about 12–14% chromium and sulfur, which boosts machinability without sacrificing strength. They typically boast a tensile strength ranging from 650 to 850 MPa, a yield strength of 310 to 550 MPa, and an elongation of 15 to 20%, depending on the heat treatment process. This material can be hardened to enhance wear resistance while still being easy to work with. With moderate corrosion resistance and reliable mechanical properties, 416 Flat Bars are perfect for precision components, machinery parts, and structural applications that demand toughness and durability.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

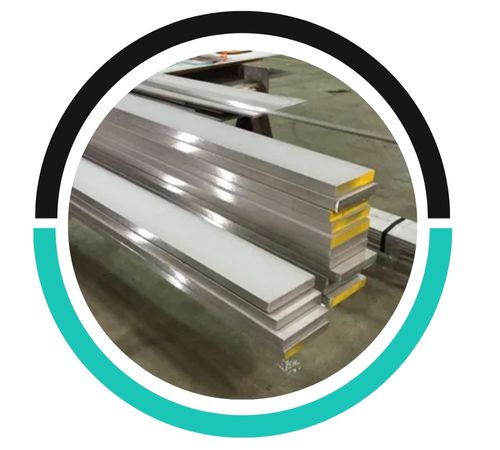

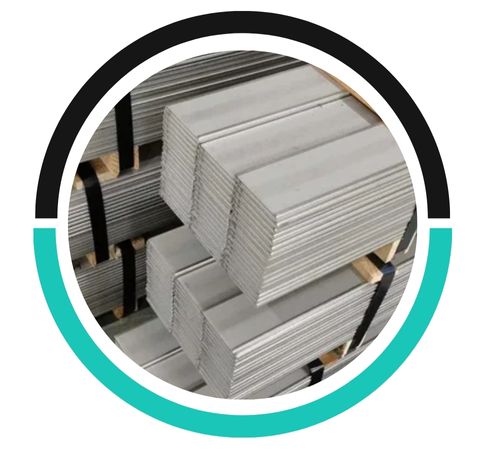

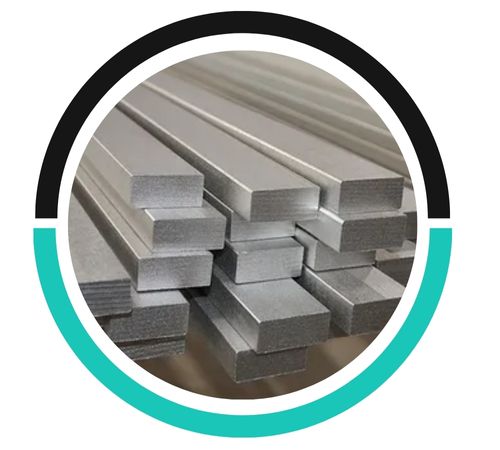

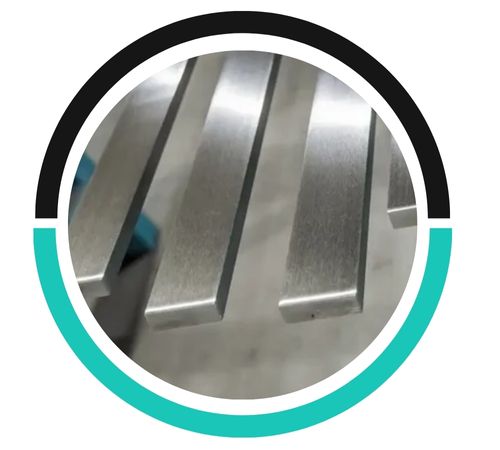

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| Flat Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
Stainless Steel 416 Flat Bar is commonly used in applications requiring moderate corrosion resistance, high strength, and machinability. It's used in shafts, valves, pumps, fasteners, and machinery components, particularly in the automotive, aerospace, and manufacturing industries.
The typical hardness level of Stainless Steel 416 Flat Bar ranges from 30 to 40 HRC (Rockwell Hardness Scale). The hardness can vary depending on the heat treatment process, with higher hardness achieved through quenching and tempering.
Common methods for machining Stainless Steel 416 Flat Bar include turning, milling, drilling, and grinding. Due to its high machinability, it can be easily processed using conventional tools, though cutting speeds and coolant usage should be optimized to reduce heat buildup.
These 416 Flat Bars find their way into various applications that require high machinability, strength, and moderate corrosion resistance. You’ll often see them used in fasteners, shafts, gears, valve components, and parts for industrial machinery. They’re also essential in automotive, aerospace, and mechanical engineering fields where precision, strength, and efficiency are paramount. Sabra Metals’ 416 Flat Bars offer engineers and manufacturers in Amman, Jordan, a trustworthy, high-performance stainless steel solution that’s suitable for a wide range of industrial and commercial projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
