Sabra Metals stands out as a reliable manufacturer and supplier based in Amman, Jordan, focusing on top-notch Titanium Grade 12 Bars and Rods. These products are perfect for industries that require exceptional corrosion resistance and strength. Known for their precision engineering and strict compliance with international standards, Sabra Metals offers titanium solutions that excel even in the toughest environments. Their Titanium Grade 12 Bars and Rods boast impressive mechanical properties and remarkable resistance to both oxidizing and reducing agents, making them a go-to choice for critical industrial applications. With cutting-edge manufacturing technology and a strong commitment to quality, Sabra Metals ensures their titanium products meet the needs of both local and global industries.
The Titanium Grade 12 Bars and Rods are made from commercially pure titanium, enhanced with about 0.35%–0.75% molybdenum, 0.015%–0.1% nickel, and 0.1%–0.2% palladium, which boosts their corrosion resistance and mechanical strength. They showcase excellent tensile strength, good ductility, and superior toughness, all while being easy to weld and form. Grade 12 titanium is particularly resistant to crevice corrosion, stress-corrosion cracking, and pitting, especially in oxidizing and mildly reducing environments. Its stability across a wide temperature range makes it perfect for demanding industrial applications where both strength and corrosion resistance are essential.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

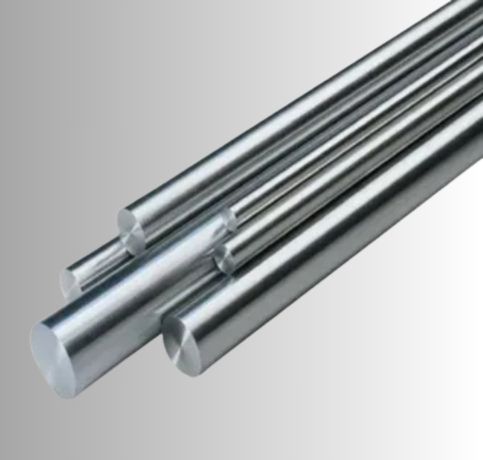

| Round bar size : | Diameter: 3-~800mm |

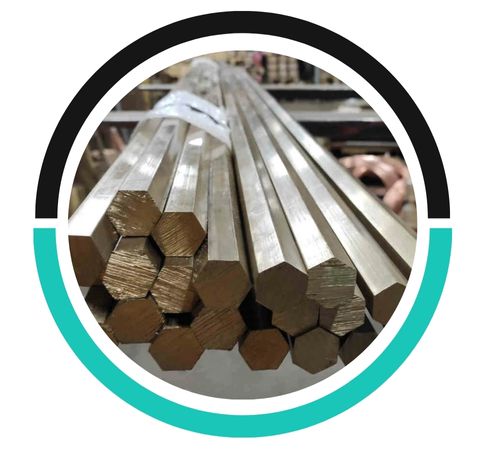

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

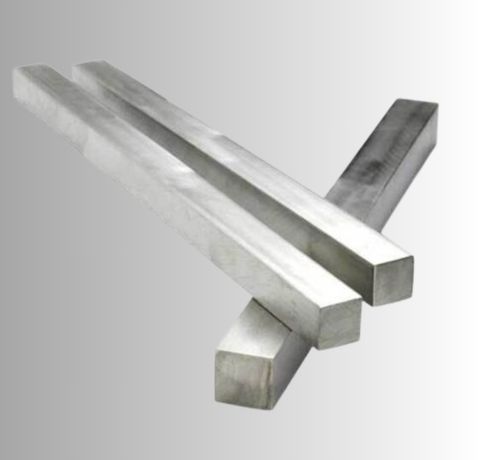

| Square bar size : | 4 to 100mm |

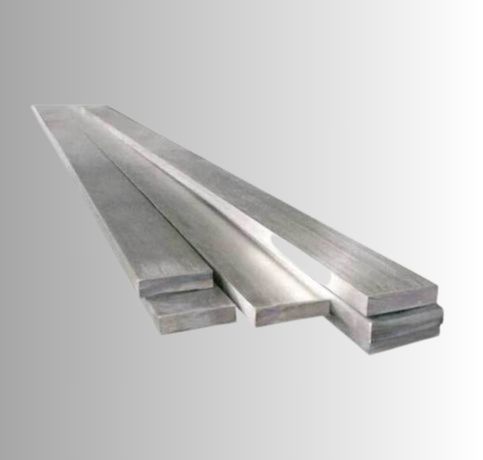

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
You’ll find Titanium Grade 12 Bars and Rods widely used in industries that need high-performance, corrosion-resistant materials. They’re commonly found in chemical processing equipment, heat exchangers, desalination plants, and marine components that face harsh seawater conditions. Their ability to withstand oxidizing and reducing acids makes them ideal for reactors, piping systems, and storage vessels that handle aggressive chemicals. In the power generation sector, they’re utilized in condenser tubes, cooling systems, and structural components. Plus, the high strength-to-weight ratio of Grade 12 titanium supports a variety of applications, making it a versatile choice for many industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
