Sabra Metals, located in Amman, Jordan, stands out as a premier manufacturer and supplier of top-notch Titanium Grade 6 bars and rods. Renowned for their remarkable corrosion resistance, impressive strength, and long-lasting durability, these titanium products are crafted with precision to adhere to stringent industrial standards. The company utilizes cutting-edge production techniques and thorough quality control measures to guarantee consistent mechanical properties and dependable performance. Catering to sectors like chemical processing, aerospace, marine, and medical, Sabra Metals delivers titanium solutions that can endure extreme conditions. With a commitment to quality and prompt delivery, they have earned a reputation as a reliable supplier of Titanium Grade 6 bars and rods on a global scale.
Titanium Grade 6 bars and rods are made from a titanium alloy containing 5% aluminum and 2.5% tin, which results in a blend of exceptional strength, outstanding corrosion resistance, and good ductility. This alloy showcases high tensile strength (around 900–950 MPa) along with excellent fatigue and creep resistance, making it perfect for challenging mechanical and structural applications. Titanium Grade 6 excels in oxidizing environments, seawater, and highly corrosive chemical processes, ensuring long-lasting durability. Its mechanical properties and resistance to corrosion make it a go-to material for engineering applications where reliability is paramount.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

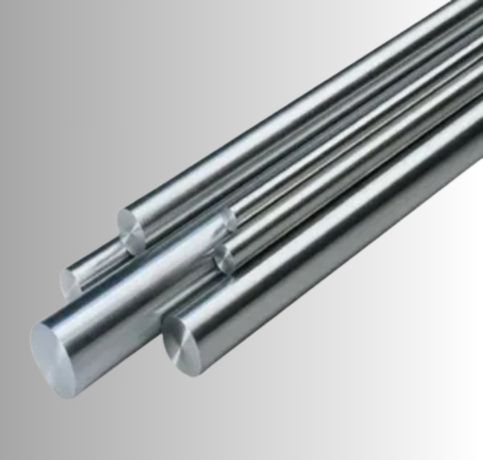

| Round bar size : | Diameter: 3-~800mm |

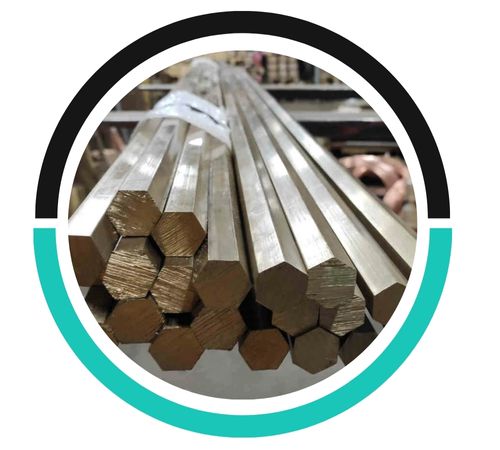

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

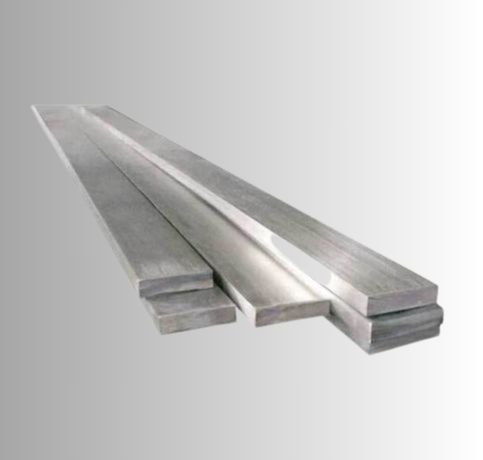

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
Titanium Grade 6 Bars and Rods provide excellent strength-to-weight ratio, outstanding corrosion resistance, high-temperature stability, and good formability, making them ideal for high-performance applications.
Titanium Grade 6 Bars and Rods offer superior strength, corrosion resistance, and weldability, along with excellent performance in high-temperature and aggressive environments, making them suitable for critical industrial applications.
These Titanium Grade 6 bars and rods find extensive use in aerospace components, chemical processing equipment, marine systems, and medical devices. They are ideal for structural parts, pressure vessels, heat exchangers, piping, and fasteners that operate in harsh or corrosive settings. The unique combination of strength, toughness, and corrosion resistance also makes Grade 6 perfect for aircraft components, offshore installations, desalination plants, and industrial machinery. Its lightweight yet robust nature ensures it meets the demands of various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
