At Sabra Metals, located in Amman, Jordan, we pride ourselves on being a reliable manufacturer and supplier of top-notch Titanium Grade 3 bars and rods. These products are celebrated for their impressive corrosion resistance, solid strength, and dependable performance, all crafted to meet stringent industrial standards. Our advanced production techniques and rigorous quality control ensure that every piece has consistent mechanical properties, precise dimensions, and exceptional durability. We cater to a variety of industries, including chemical processing, marine, aerospace, and medical, providing titanium solutions that can handle even the toughest environments. With our unwavering commitment to quality and timely delivery, Sabra Metals stands out as a trusted supplier of Titanium Grade 3 bars and rods around the globe.
Our Titanium Grade 3 bars and rods are made from commercially pure titanium, featuring controlled levels of oxygen (around 0.20%) and iron (approximately 0.30%). This composition strikes a perfect balance between strength and outstanding corrosion resistance. This grade showcases moderate tensile strength (roughly 480–550 MPa) while also offering excellent ductility and fatigue resistance. Titanium Grade 3 shines in oxidizing environments, seawater, and various acidic solutions, making it the go-to choice for applications that demand a lightweight yet robust material. Its unique combination of formability, corrosion resistance, and strength makes it perfect for a wide array of engineering applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |

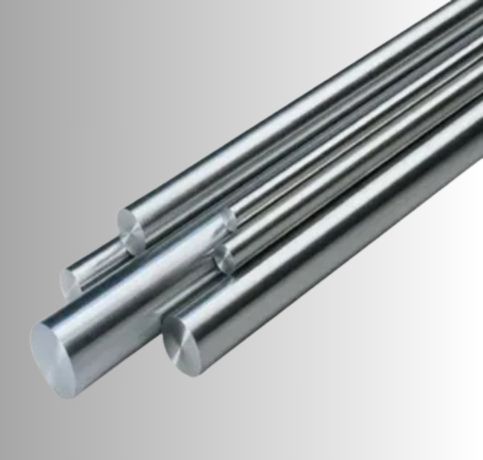

Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
You’ll find Titanium Grade 3 bars and rods in numerous applications, from chemical processing equipment to marine systems, aerospace components, and medical devices. They’re perfect for structural supports, piping, heat exchangers, fasteners, and other components that face corrosive or seawater conditions. Thanks to their remarkable corrosion resistance, moderate strength, and ductility, they’re also well-suited for desalination plants, industrial machinery, and offshore projects. With Titanium Grade 3 bars and rods, you can count on reliability and durability in every application.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
