Sabra Metals stands out as a top-notch manufacturer and supplier located in Amman, Jordan, with a focus on high-quality Titanium Grade 4 Bars and Rods. These products are essential for industries that demand exceptional strength, corrosion resistance, and durability. Renowned for their precision in manufacturing and a strong commitment to international quality standards, Sabra Metals ensures that their offerings perform reliably even in the toughest conditions. Their Titanium Grade 4 Bars and Rods boast impressive mechanical properties and outstanding corrosion resistance, making them perfect for critical engineering and industrial uses. With cutting-edge production capabilities and a customer-centric approach, Sabra Metals is dedicated to delivering trusted titanium solutions to both regional and global markets.
The Titanium Grade 4 Bars and Rods are crafted from commercially pure titanium, featuring a slightly higher oxygen content than lower grades. This gives them enhanced strength while still offering excellent corrosion resistance. They deliver high tensile strength, good ductility, and remarkable toughness, along with great weldability and formability. Grade 4 titanium is resistant to corrosion in both oxidizing and reducing environments, including seawater, which makes it suitable for a variety of applications. Its mechanical and chemical stability across a wide temperature range guarantees reliable performance in demanding operational settings.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

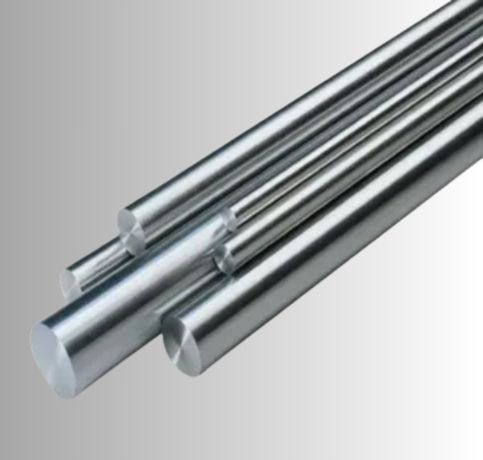

| Round bar size : | Diameter: 3-~800mm |

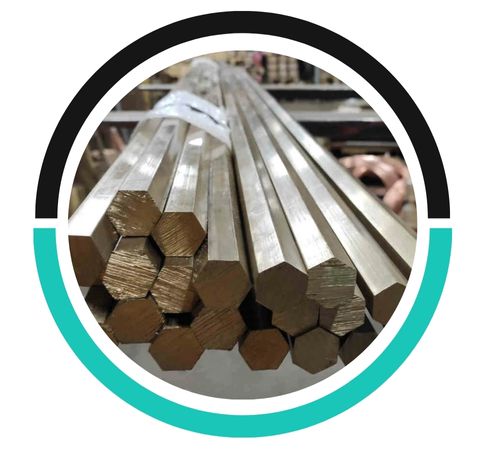

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

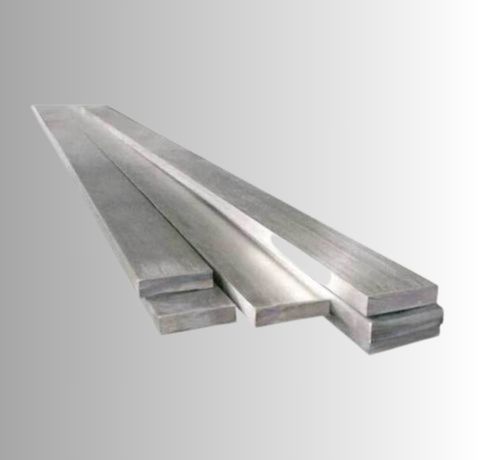

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 4 | 3.7065 | R50700 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 4 | 0..08 max | 0.05 max | 0.40 max | 0.015 max | Bal | 0.50 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 552 | 25 % | 15 % | 100 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.163 | 2.87 | 119 | 0.127 | 0.00000478 | 3020 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
Titanium Grade 4 Bars and Rods are composed of 90% titanium, 6% aluminum, and 4% vanadium, offering excellent strength, corrosion resistance, and durability.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
These Titanium Grade 4 Bars and Rods are extensively utilized in industries that require a blend of strength, lightweight characteristics, and exceptional corrosion resistance. They’re commonly found in chemical processing equipment, heat exchangers, desalination systems, and marine components that face seawater or harsh chemicals. Their biocompatibility also makes them a great choice for medical implants and surgical instruments. In the aerospace and power generation sectors, they are used for structural components, piping, and condenser systems where durability and corrosion resistance are crucial. Grade 4 titanium is truly ideal for high-performance applications in challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
